Connecting the Power Pack
- Verifone recommends connecting wall power in the following order: Connect the terminal to the power supply, connect the power supply to the power cord or connect the power cord to the wall outlet.
- Place the terminal upside down, press the unlock button and then lift the rear cover to access the slots.

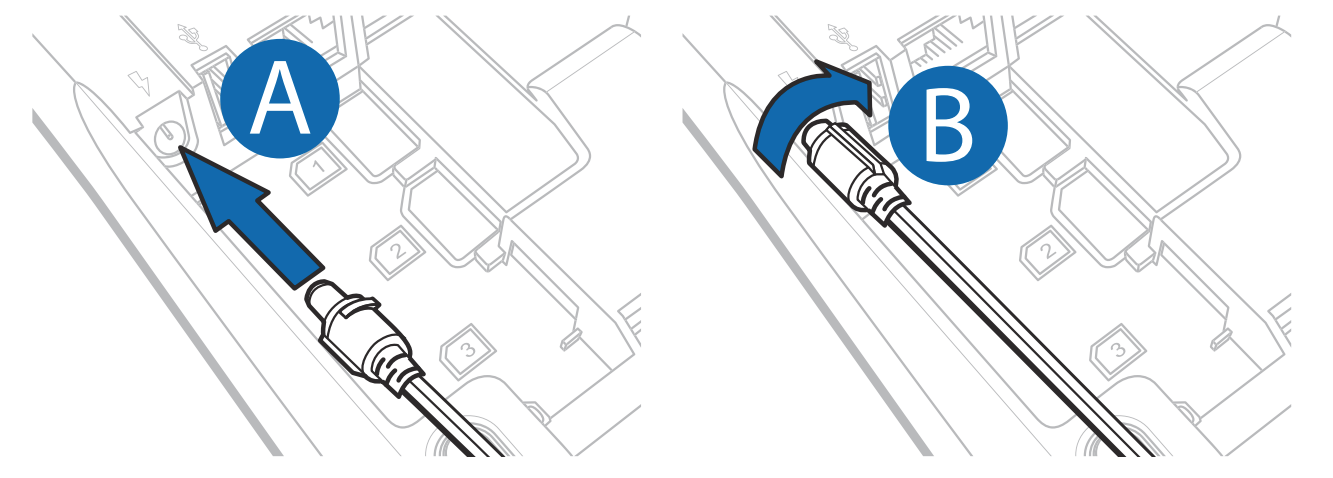

- Insert the round barrel connector into the power port, as shown in the image.
6. Route the cable in the direction of the arrow above the power port and sling the cable over the underside of the thermal paper container.
7. After inserting the round barrel connector into the power port, you can lock the barrel connector to keep it engaged to the terminal even when an installation tensions the power cord.

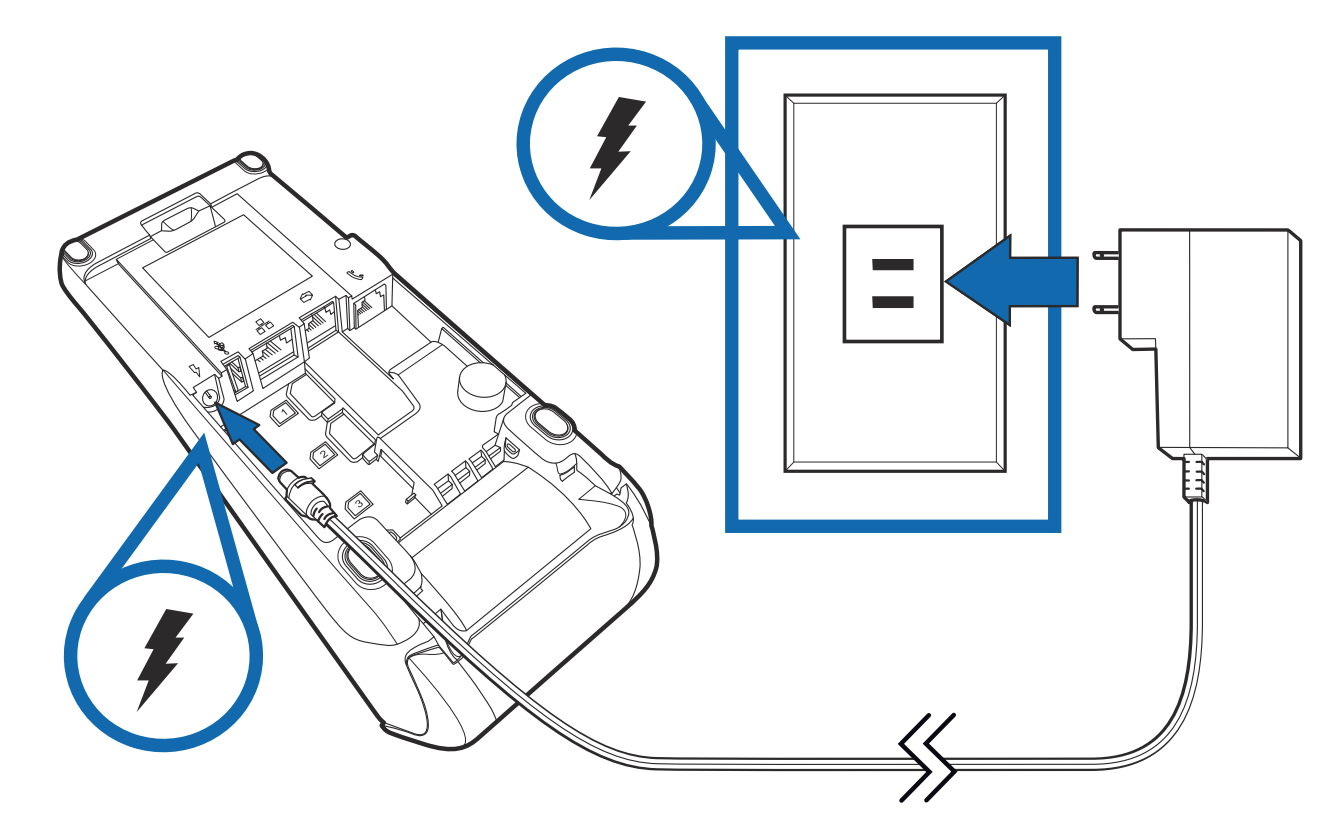

8. Close the terminal rear cover. Plug the AC power pack into a wall outlet or powered surge protector.
Caution: Do not plug the power pack into an outdoor outlet or operate the terminal outdoors. Disconnecting the power during a transaction may cause transaction data files not yet stored in terminal to be lost. To protect against possible damage caused by lightning strikes and electrical surges, consider installing a power surge protector. |
